SQL Insert

Use Case

In this example, we demonstrate how to create a route that inserts data into a database.

Steps:

  1. Create a datasource
  2. Use the SQL Component to execute insert operations

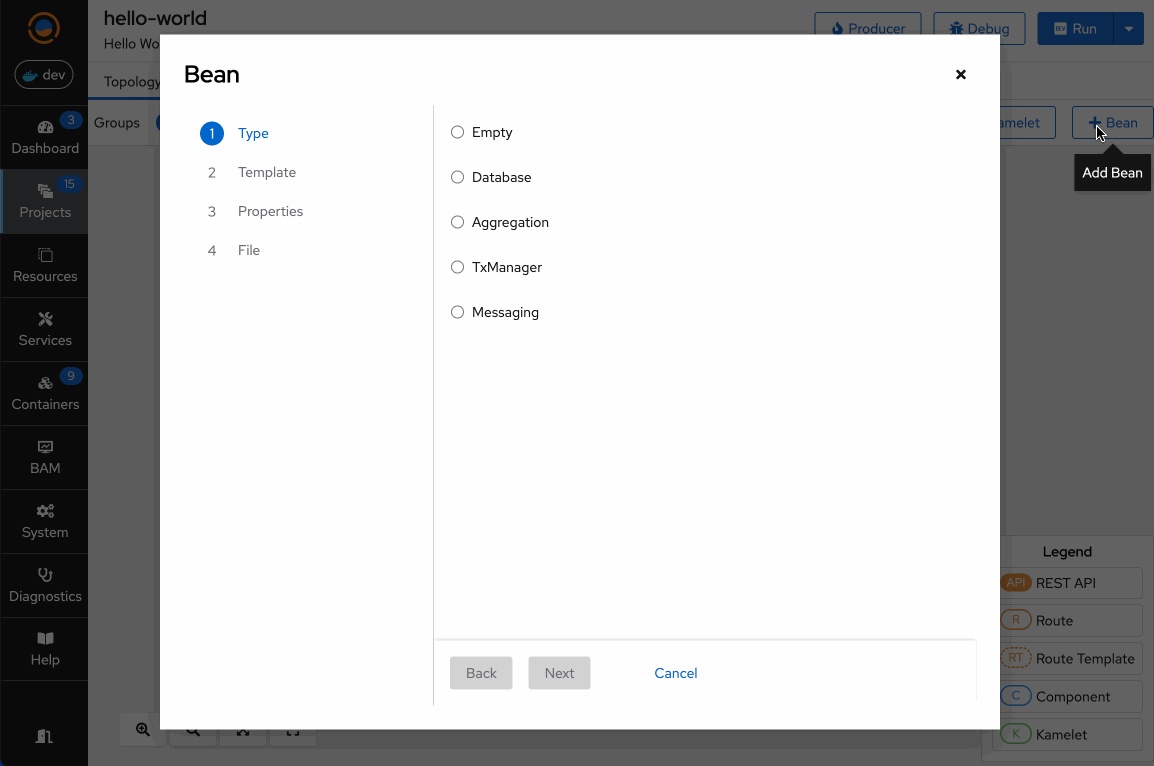

Create Datasource

To interact with a database, a datasource must first be defined. Below is a visual representation and example configuration for creating a datasource.

Image title

Example: database.camel.yaml

- beans:
    - name: PostgresDatabase
      type: "#class:org.apache.commons.dbcp2.BasicDataSource"
      properties:
        username: username
        password: password
        url: jdbc:postgresql://postgres:5432/databaseName
        driverClassName: org.postgresql.Driver

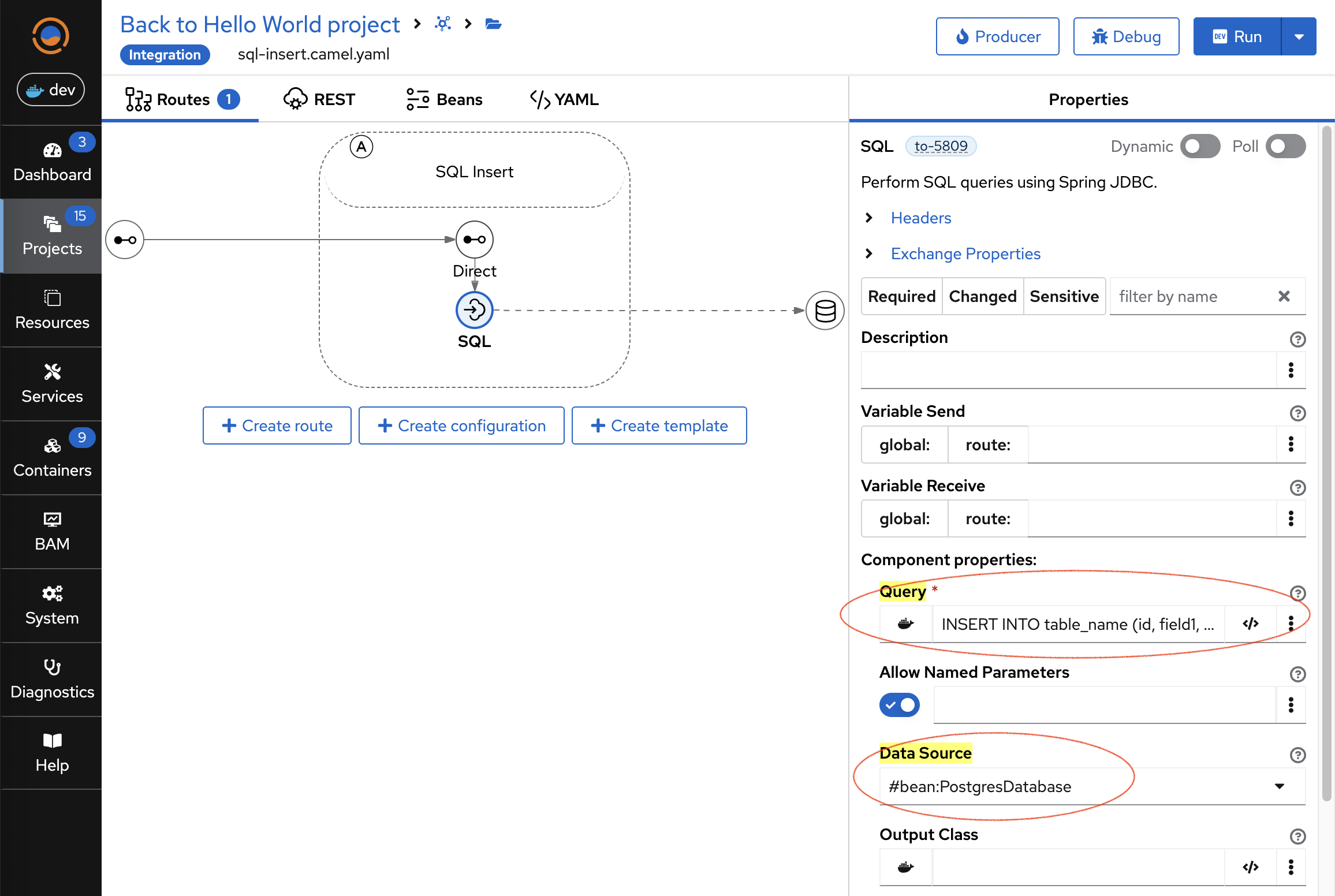

Use the SQL Component

After configuring the datasource, you can use the SQL Component to insert data into your database.

Image title

Configure the datasource and define the SQL query. Below is an example of a query using data mapped from the exchange:

INSERT INTO table_name (id, field1, field2)
VALUES (:#${body[id]}, :#${variable.var1}, :#${variable.var2})
  • The :#${...} syntax is used for parameter substitution with values from the Camel exchange.
  • Ensure that the datasource name matches the name used in your route definition.

Additional Resources Apache Camel SQL Component Documentation
