JSON Schema Designer

The Talisman JSON Schema Designer is a visual workspace for architecting the data contracts that underpin your integration platform. It allows developers to model complex data structures using a graphical interface, ensuring strict type safety without needing to manually write verbose JSON syntax.

These schemas act as the "Common Language" of your platform, reusable across both Event-Driven (AsyncAPI) and RESTful (OpenAPI) architectures.

JSON Schema Catalog

Beyond simple editing, Talisman provides a comprehensive Schema Catalog. This acts as a centralized registry for all shared data definitions, providing deep visibility into how data is consumed across your ecosystem.


Centralized Library

View all global schemas stored in the contracts directory in a searchable, sortable list. This promotes reusability and prevents data duplication (e.g., stopping three different teams from creating three different "Customer" objects).

Reference Tracking

The Catalog includes a powerful dependency graph that tracks exactly where each schema is referenced. Before modifying a schema, you can instantly see the potential impact on:

  • Other Schemas: Schemas that import this file via $ref (Composition/Inheritance).
  • AsyncAPI: Specific Channels and Messages that use this schema for payloads.
  • OpenAPI: Specific REST Operations that use this schema for Request Bodies or Responses.

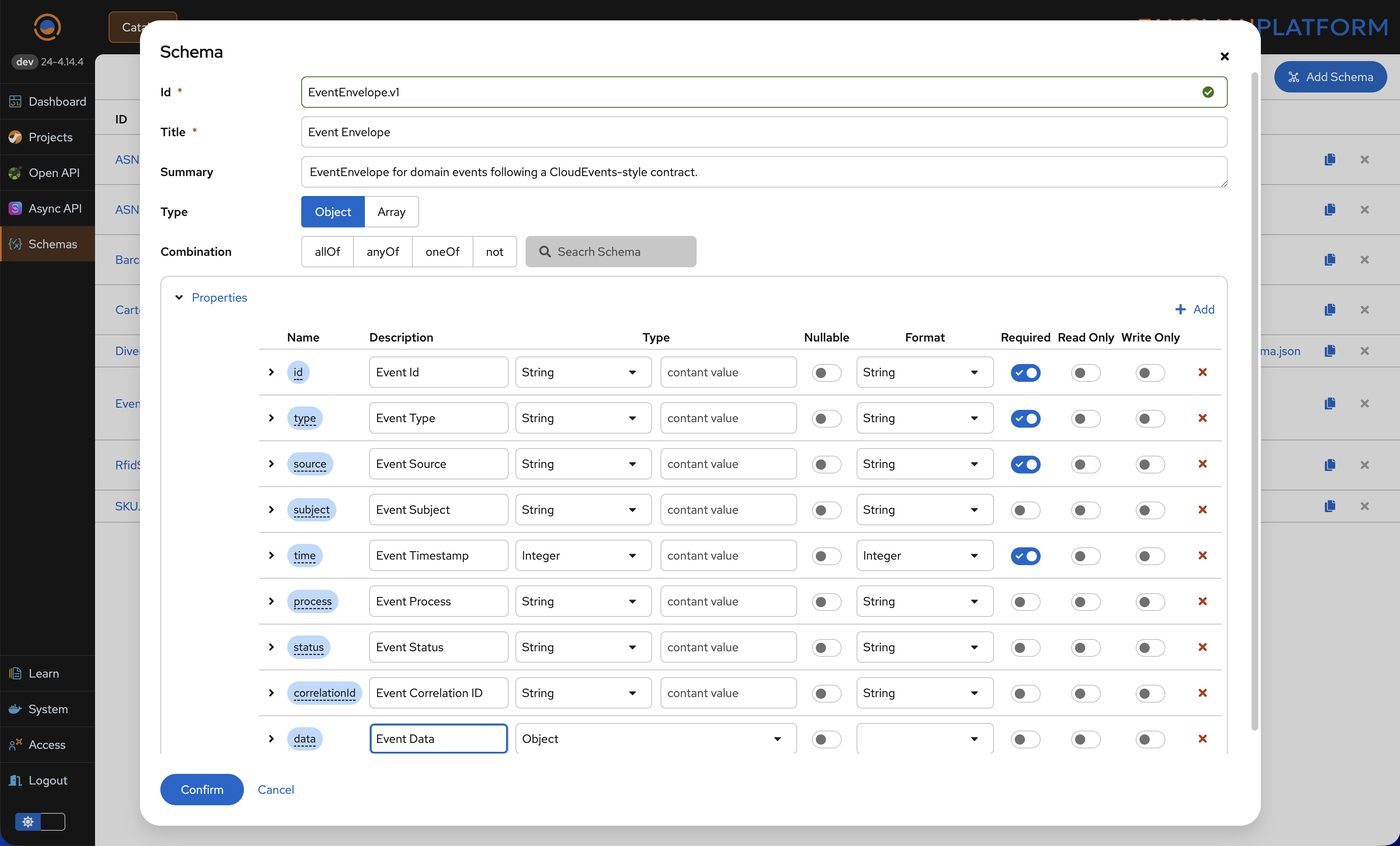

JSON Schema Designer

Construct complex objects, arrays, and primitive types through a hierarchical tree view.

  • Properties: Add fields (String, Integer, Boolean, etc.) with a single click.
  • Validation: Define constraints directly in the UI (e.g., minimum, maximum, pattern regex, or enum values).
  • Required Fields: Toggle required status to enforce data completeness.

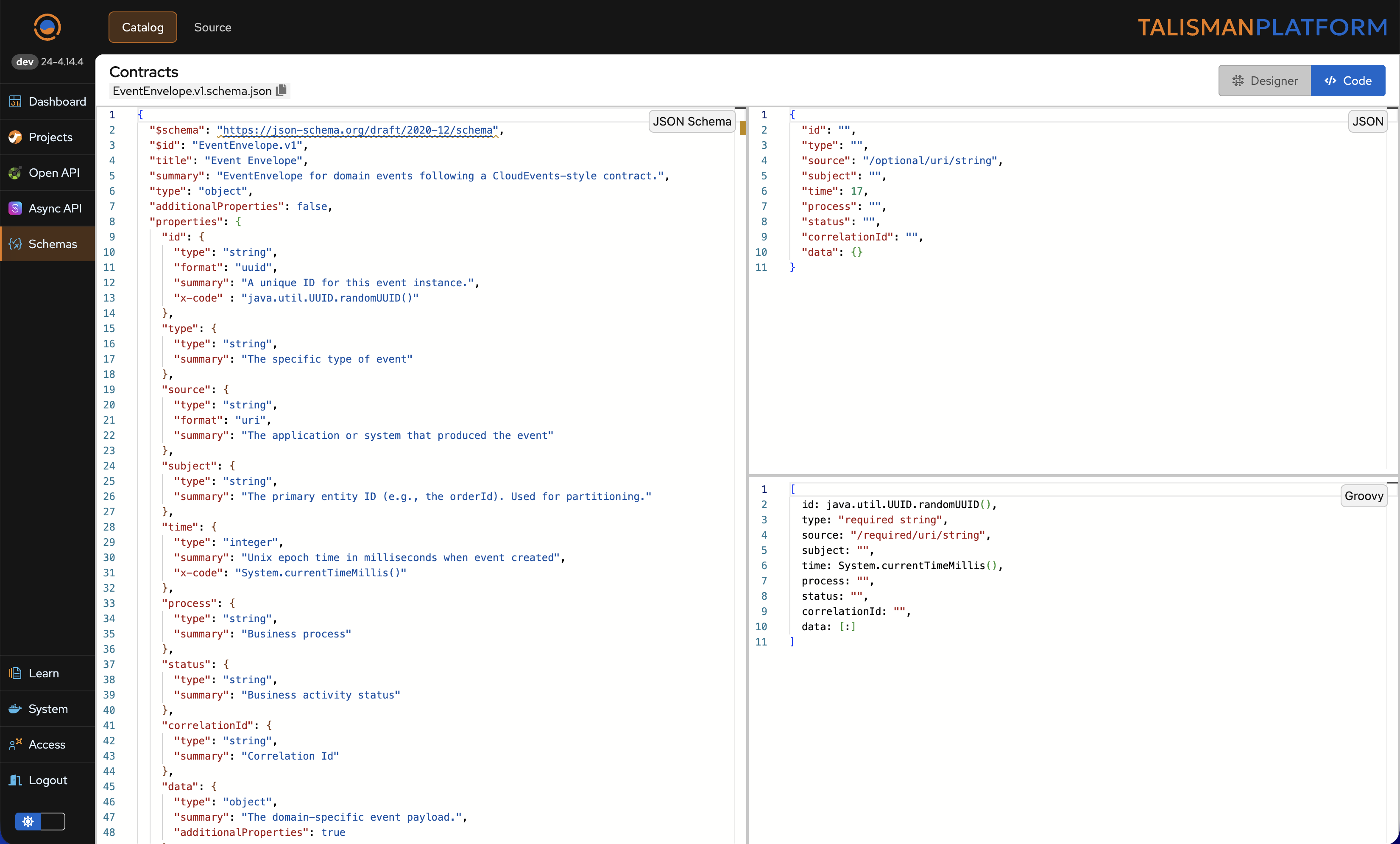

JSON Schema Editor


Live JSON Example

As you build your schema, the right-hand panel automatically generates a Live JSON Example.

  • Instant Feedback: See exactly what a valid JSON payload looks like based on your current definition.
  • Mock Data: The editor populates fields with realistic dummy data (e.g., random UUIDs, dates, or strings) to help you visualize the final output.

Groovy Code Generator

For developers integrating these schemas into custom Camel processors or scripts, the Designer includes a Groovy Code tab.

  • POJO Generation: Automatically generates a Groovy class (POJO) representation of your schema.
  • Copy-Paste Ready: Quickly grab the code snippet to use within a Groovy script or Camel Processor to parse or build objects that adhere to the schema.

Technical Specifications

  • Format: Adheres to JSON Schema Draft 2020-12.
  • Location: Files are stored in the contracts directory.
  • Reusability: Once defined, a schema (e.g., Order.v1.schema.json) becomes a global asset available to all Designers.

Usage in Workflow

The JSON Schema Designer is the foundation for both AsyncAPI and OpenAPI workflow.

Create Schema

Define the structure of your business entity.

  • Example: Create Customer.v1.schema.json with fields id (UUID), name (String), and email (String format email).

Apply Constraints

Add business rules to the data definition.

  • Action: Set email as a required field and add a regex pattern to ensure valid formatting.

Reference in Contracts

Link this schema to your high-level architecture.

  • AsyncAPI: Wrap the schema in a Message payload to define what data is published to a channel.
  • OpenAPI: Import the schema as a Data Type to define a Request Body or API Response.
